محرك تروس تيار مستمر 36GF555

Name: محرك تروس تيار مستمر 36GF555
Brand: CROTOR
Price: 9.00 USD
Availability: InStock
Rating: 5 (1 reviews)

مزايا صندوق التروس النتوءي

1. كفاءة عالية :

مع أحد أعلى مستويات الكفاءة (تصل إلى 98%) في صناعة نقل الطاقة الميكانيكية، تم تصميم صناديق التروس الحلزونية لتقليل فقدان الطاقة وتعظيم نقل عزم الدوران، مما يجعلها مناسبة لمختلف الاستخدامات الصناعية.

2. فعالية التكلفة:
بفضل تصميمها وبنيتها البسيطة، تُعدّ علب التروس المحفزة من بين أنظمة التروس الأكثر توفيرًا. كما أن انخفاض تكاليف تصنيعها يجعلها خيارًا جذابًا للشركات الصغيرة والصناعات الكبيرة على حد سواء.
3. الموثوقية والمتانة :

بفضل بنيتها المتينة وموادها المقاومة للتآكل، تضمن هذه الأجهزة قدرتها على العمل المتواصل لساعات طويلة دون أي أعطال. هذه الموثوقية تجعلها جزءًا أساسيًا من العديد من التطبيقات عالية الطلب.

$9.00

GET A QUOTE

Description

PRODUCT PARAMETERS
Spur Gear Box + PMDC Motor

What is Spur Gear Box?

A spur gear box is a mechanical system that uses spur gears to transfer torque between two parallel shafts. The gears inside the gearbox are designed with straight teeth that mesh together efficiently to transmit power from one gear to another. Spur gearboxes are one of the simplest and most widely used types of gearboxes due to their straightforward design, low cost, and reliability.

Advantages of Spur Gear Box
1. High Efficiency:

With one of the highest efficiency levels (up to 98%) in the mechanical power transmission industry, Spur Gear Boxs are designed to minimize energy loss and maximize torque transmission, making them suitable for various industrial uses.

2. Cost-Effectiveness:
Due to their simple design and construction, spur gearboxes are among the most affordable gear systems available. The low manufacturing costs make them an attractive option for both small businesses and large industries.
3. Reliability and Durability:

Their robust construction and wear-resistant materials ensure that they can handle long hours of continuous operation without failure. This reliability makes them an essential part of many high-demand applications.

What is PMDC motor?
PMDC motors are mainly composed of two parts: stator and rotor. Permanent magnets are installed on the stator to generate a fixed magnetic field; There are armature windings and commutators on the rotor. The armature winding is connected to the external circuit through electric brushes. When current passes through the armature winding, a rotating magnetic field is generated, which interacts with the magnetic field generated by the permanent magnet to drive the motor to rotate.

Advantages of PMDC motors
1. Fast response:
Due to the use of permanent magnets, the response to voltage changes is very fast.
2. Lower cost:
Compared to brushless motors, brushed motors have lower manufacturing costs.
3. Convenient control:
The control of brushed motors is relatively simple and suitable for various fields such as electric tools, household appliances, industrial equipment, etc.

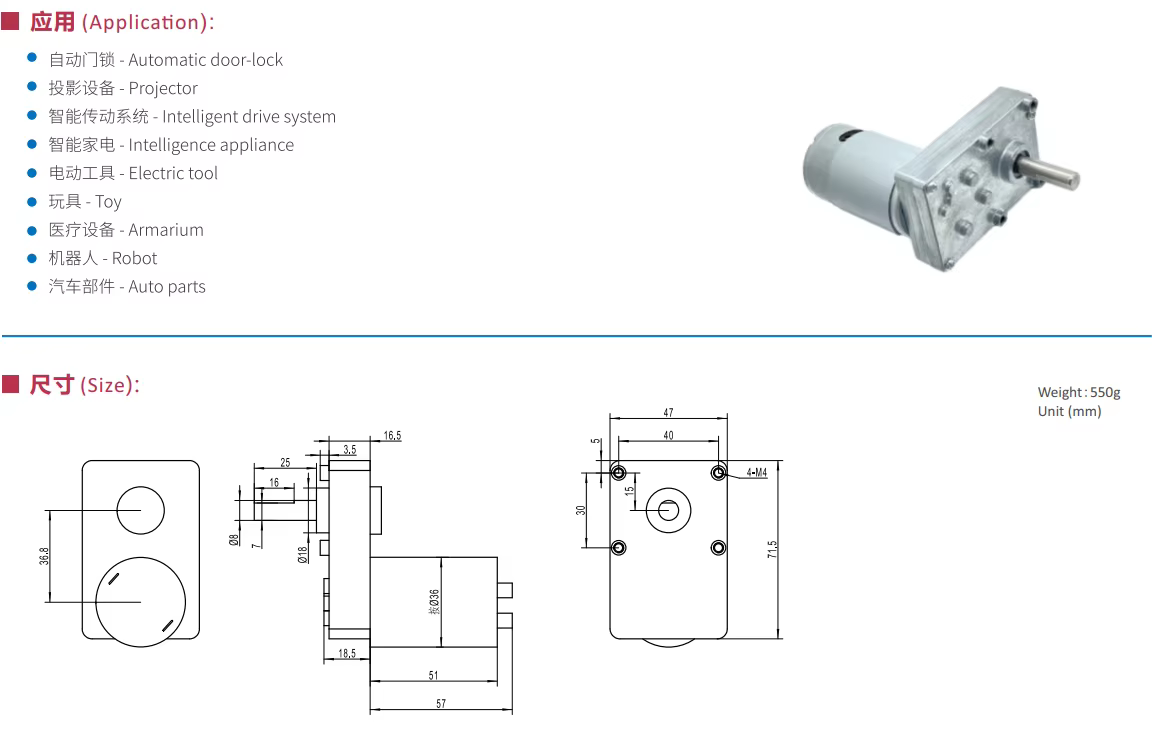

PRODUCT DETAILS

PRODUCT APPLICATIONS
